EX3U-8050H-2AD1DA Automation PLC Controller Built-in HMI Touch Screen Display 8 Axis High-speed Pulse
| Lieu d'origine | Chine, GONGDONG |
|---|---|
| Nom de marque | Coolmay |
| Certification | CE |
| Numéro de modèle | Pour les appareils à moteur électrique |
| Quantité de commande min | 1 pièce |
| Prix | negotiable |
| Détails d'emballage | cartonné |
| Délai de livraison | 3-8 jours ouvrables |
| Conditions de paiement | T/T, Western Union, Monégramme |
| Capacité d'approvisionnement | 15000 unités par semaine |
Contactez-moi pour des aperçus gratuits et des bons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Caractéristique | Écran tactile résistif 60K couleurs | ROM | NOR Flash 128 Mb |
|---|---|---|---|
| Ports COM IHM | Port de téléchargement IHM de type C/port RS232 | Port COM de l'automate | 1x TYPE-C, 1x RS232, 1x RS485 |
Description de produit

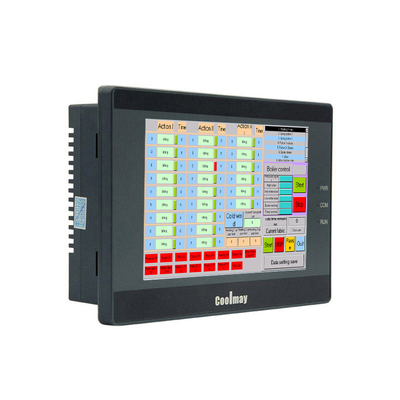

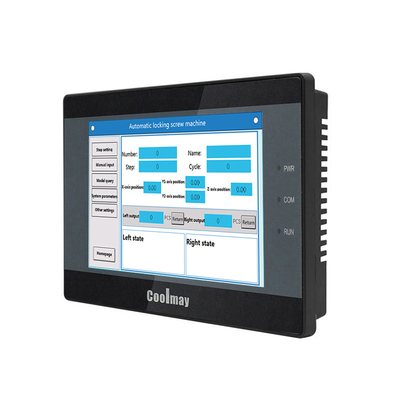

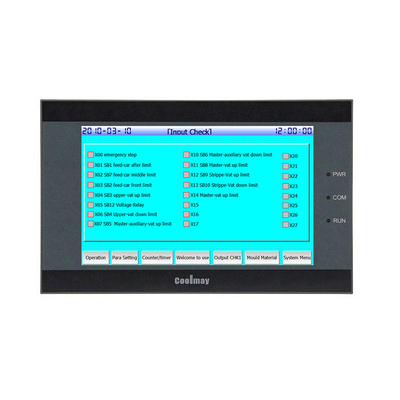

Automation PLC Controller Built-in HMI Touch Screen Display 8 Axis High-speed Pulse
The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.
PRODUCT DESCRIPTION of HMI PLC ALL IN ONE
Features of 5 inch HMI all in one :
1. Super functions.PLC operate fast.
2.Highly integration.The digital points are 12 inputs and 12 outputs at most.The digital output can be transistor,relay or mixed output.Analog can reach up to 2 input and 1 output.It has 2PLC COM port(Rs232and USB Port).1 downloading port on HMI
3. Support several high-speed counting and high-speed pulse.Acceleration and deceleration are independent.The total high-speed counting and pulse can not exceed 480KHz
4.32K steps program capacity.32K power-off retentive registers.support interrupt.linear and circular interpolation.PID self-adjusting
5. Special encrvotion.Set password as 12345678 to thorouahly prevent readina dataPLC only supporls 8-bit password encryotion
6.PLC is compatible with programming software Vtool PRO and HMl is Vcool software.
7.The network module can be selected accordina to customer reauirements to realize remote control More models are supported to customize if bulk order.
-

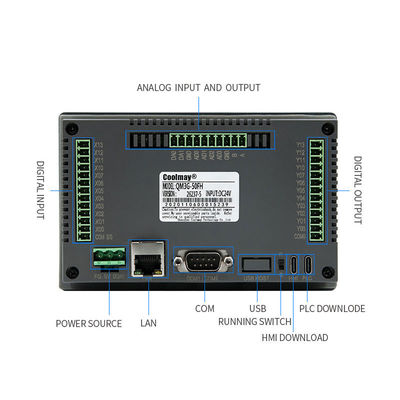

Model EX3U-8050H Dimension 151*96*36mm Cutout size 143*86mm Input 24VDC Power Consumption 4-6W HMI Feature 60K colors resistive touch screen, supports portrait display Type 5"TFT Display size 108*65mm Resolution(pixels) 800*480 RAM 128MB (Please inquire if requires storing historical data) ROM NOR Flash 128MB CPU 32bit Dual-core 1GHz COM ports Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port Software Coolmay vCool HMI Programming Software PLC I/O level - Input: Passive NPN, public terminal isolated
- Transistor output: Low level NPN, COM connect to negative
- Relay output: Normally open dry contact
DO type and load - MT: 2A/point, 4A/4 point COM, 5A/12 point COM
MR: 2A/point, 5A/12 point COM
High-speed counting Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz High-speed pulse
(Only for MT models)
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz
COM port 1x TYPE-C, 1x RS232, 1x RS485 Software Vtool PRO
Maintenance and service
- Your products will be 18-month warranty excluding artificial damage.
- You would receive unlimited support via video, phone or email.
- OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
RFQ:
Q: Do you provide a cargo warranty?
Yes, we provide warranty on all goods.
Q: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.
Q: Does Coolmay keep inventory or trade only?
A:We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
A:We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
Q: What is your MOQ?
A: We provide you with a small order quantity for each item, depending on your specific order!
A: We provide you with a small order quantity for each item, depending on your specific order!
